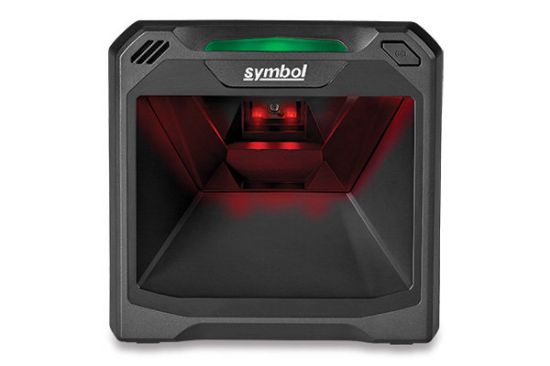

DS7708 Barcode Scanner

The DS7708 is a high-performance on-counter scanner that quickly reads all types of barcodes, whether printed or electronic. It features a compact design suitable for tight spaces and high durability that reduces costs and extends device life and return on investment.

Features

High scan speed up to 2.5 m/s allows quick barcode reading as items are passed.
Wide field of view with omni-directional scanning for effortless "swipe-and-go" use without aligning items.
Exceptional durability with recessed scan window and spill-protected design.
Discreet illumination that doesn’t disturb customers or cashiers.
Integrated EAS support for deactivating security tags while scanning, boosting efficiency and preventing false alarms.

Specifications

Physical Characteristics

Dimensions	Scanner only: 5.63 in. H x 5.86 in. W x 3.81 in. D 14.3 cm H x 14.9 cm W x 9.7 cm D Scanner with Table Mount Kit: 6.06 in. H x 5.93 in. W x 3.85 in. D 15.4 cm H x 15.1 cm W x 9.8 cm D
Weight	17.6 oz. / 500 g
Voltage and Current	Without auxiliary scanner: Standby: 5 VDC +/-10% @ 125ma avg. Operating: 5 VDC +/-10% @ 480ma avg. With auxiliary scanner: Standby: 12 VDC +/-10% @ 100ma avg. Operating: 12 VDC +/-10% @ 400ma avg.
Color	Midnight Black
Supported Host Interfaces	USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support	Supports over 90 international keyboards
Auxiliary Scanner Interface	USB
Electronic Article Surveillance	Compatible with Checkpoint EAS deactivation systems

Performance Characteristics

Swipe Speed	Up to 100 in./sec. (254 cm/sec.)
Light Source	Two deep red LEDs (660nm)
Imager Field of View	48.0° x 36.7° (bar-code reading) 48.0° x 33.7° (image capture)
Image Sensor	1280 x 960 (bar-code reading) 1280 x 880 (image capture)
Minimum Print Contrast	25% minimum reflective difference
Roll / Pitch / Yaw (Skew)	360˚, ±70˚, ±70˚ typical

User Environment

Operating Temperature	32˚ to 104˚ F / 0˚ to 40˚ C
Storage Temperature	-40˚ to 158˚ F / -40˚ to 70˚ C
Humidity	5% to 85% RH, non-condensing
Environmental Sealing	IP52
Electrostatic Discharge (ESD)	ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV Indirect (without auxiliary scanner)
Ambient Light Range	From darkness (0 fcd) to 450 fcd artificial light and 10,000 fcd direct sunlight

1150.00 SAR

increase decrease

Availability: In stock

Free shipping

Overview
Reviews
Contact Us

Features

High scan speed up to 2.5 m/s allows quick barcode reading as items are passed.
Wide field of view with omni-directional scanning for effortless "swipe-and-go" use without aligning items.
Exceptional durability with recessed scan window and spill-protected design.
Discreet illumination that doesn’t disturb customers or cashiers.
Integrated EAS support for deactivating security tags while scanning, boosting efficiency and preventing false alarms.

Specifications

Physical Characteristics

Dimensions	Scanner only: 5.63 in. H x 5.86 in. W x 3.81 in. D 14.3 cm H x 14.9 cm W x 9.7 cm D Scanner with Table Mount Kit: 6.06 in. H x 5.93 in. W x 3.85 in. D 15.4 cm H x 15.1 cm W x 9.8 cm D
Weight	17.6 oz. / 500 g
Voltage and Current	Without auxiliary scanner: Standby: 5 VDC +/-10% @ 125ma avg. Operating: 5 VDC +/-10% @ 480ma avg. With auxiliary scanner: Standby: 12 VDC +/-10% @ 100ma avg. Operating: 12 VDC +/-10% @ 400ma avg.
Color	Midnight Black
Supported Host Interfaces	USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support	Supports over 90 international keyboards
Auxiliary Scanner Interface	USB
Electronic Article Surveillance	Compatible with Checkpoint EAS deactivation systems

Performance Characteristics

Swipe Speed	Up to 100 in./sec. (254 cm/sec.)
Light Source	Two deep red LEDs (660nm)
Imager Field of View	48.0° x 36.7° (bar-code reading) 48.0° x 33.7° (image capture)
Image Sensor	1280 x 960 (bar-code reading) 1280 x 880 (image capture)
Minimum Print Contrast	25% minimum reflective difference
Roll / Pitch / Yaw (Skew)	360˚, ±70˚, ±70˚ typical

User Environment

Operating Temperature	32˚ to 104˚ F / 0˚ to 40˚ C
Storage Temperature	-40˚ to 158˚ F / -40˚ to 70˚ C
Humidity	5% to 85% RH, non-condensing
Environmental Sealing	IP52
Electrostatic Discharge (ESD)	ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV Indirect (without auxiliary scanner)
Ambient Light Range	From darkness (0 fcd) to 450 fcd artificial light and 10,000 fcd direct sunlight
