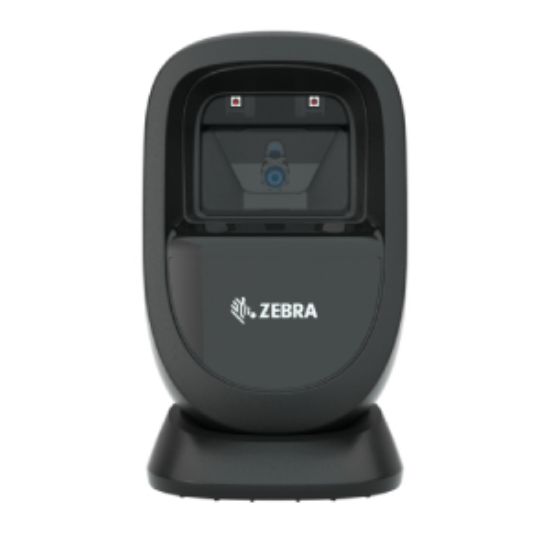

ZEBRA DS9308 Barcode Scanner

Be the first to review this product
Compact fixed barcode scanner, plug and play setup, supports screen barcode reading.

The Zebra DS9300 barcode scanner offers fast scanning, multi-language support, USB connectivity, and barcode-based reset, fully compatible with Notepad and Word.



Key Features:

  • Easy deployment and management: Ready to use out of the box with optimized default settings.

  • Backward compatibility: Supports cables and power supplies from the DS9208.

  • Plug-and-Play connectivity: Instantly recognizes all popular interfaces and supports nearly 100 keyboard languages.

  • Multiple mounting options:

    • "Slipper" mount keeps the scanner stable on tables or walls while allowing tilt and handheld use.

    • Locking mount ideal for fixed applications such as self-checkout or mobile loyalty programs.

  • Advanced management technologies (DataCapture DNA):

    • 123Scan tool for easy staging and updating with a single barcode scan.

    • SDK for faster and easier application development.

    • ScanSpeed Analytics for monitoring performance and resolving issues proactively.

    • Remote device management through Scanner Management Service (SMS) or Windows Management Instrumentation (WMI), reducing costs and field visits.





Specifications



Physical Characteristics


Dimensions 5.7 in. H x 3.4 in. W x 3.3 in. D
14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight 11.2 oz. / 318.0 g
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V) Presentation mode: 335mA
Trigger mode: 350mA
Standby Current (Idle) at Nominal Voltage (5.0V) Presentation mode: 135mA
Trigger mode: 75mA
Color Alpine White, Midnight Black
Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
TAA Compliance Trade Agreement Act Compliant
(optional on select configurations)
Electronic Article Surveillance Compatible with Checkpoint EAS deactivation system
User Indicators Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)


Performance Characteristics


Swipe Speed (Presentation) Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
Light Source Aiming pattern: circular 617 nm amber LED
Illumination 660 nm Hyper Red LED
Imager Field of View 52° H x 33° V nominal
Image Sensor 1280 x 800 pixels
Minimum Print Contrast 15%
Skew Tolerance +/-60°
Pitch Tolerance +/-60°
Roll Tolerance 360°



User Environment


Operating Temperature 32.0° F to 122.0° F / 0.0° C to 50.0° C
Storage Temperature -40.0° F to 158.0° F / -40.0° C to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
Tumble Specification Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental Sealing IP52
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light Immunity 0 to 10,000 foot-candles/0 to 107,700 Lux
575.00 SAR
increase decrease
Availability: In stock
Free shipping

The Zebra DS9300 barcode scanner offers fast scanning, multi-language support, USB connectivity, and barcode-based reset, fully compatible with Notepad and Word.



Key Features:

  • Easy deployment and management: Ready to use out of the box with optimized default settings.

  • Backward compatibility: Supports cables and power supplies from the DS9208.

  • Plug-and-Play connectivity: Instantly recognizes all popular interfaces and supports nearly 100 keyboard languages.

  • Multiple mounting options:

    • "Slipper" mount keeps the scanner stable on tables or walls while allowing tilt and handheld use.

    • Locking mount ideal for fixed applications such as self-checkout or mobile loyalty programs.

  • Advanced management technologies (DataCapture DNA):

    • 123Scan tool for easy staging and updating with a single barcode scan.

    • SDK for faster and easier application development.

    • ScanSpeed Analytics for monitoring performance and resolving issues proactively.

    • Remote device management through Scanner Management Service (SMS) or Windows Management Instrumentation (WMI), reducing costs and field visits.





Specifications



Physical Characteristics


Dimensions 5.7 in. H x 3.4 in. W x 3.3 in. D
14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight 11.2 oz. / 318.0 g
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V) Presentation mode: 335mA
Trigger mode: 350mA
Standby Current (Idle) at Nominal Voltage (5.0V) Presentation mode: 135mA
Trigger mode: 75mA
Color Alpine White, Midnight Black
Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
TAA Compliance Trade Agreement Act Compliant
(optional on select configurations)
Electronic Article Surveillance Compatible with Checkpoint EAS deactivation system
User Indicators Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)


Performance Characteristics


Swipe Speed (Presentation) Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
Light Source Aiming pattern: circular 617 nm amber LED
Illumination 660 nm Hyper Red LED
Imager Field of View 52° H x 33° V nominal
Image Sensor 1280 x 800 pixels
Minimum Print Contrast 15%
Skew Tolerance +/-60°
Pitch Tolerance +/-60°
Roll Tolerance 360°



User Environment


Operating Temperature 32.0° F to 122.0° F / 0.0° C to 50.0° C
Storage Temperature -40.0° F to 158.0° F / -40.0° C to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
Tumble Specification Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental Sealing IP52
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light Immunity 0 to 10,000 foot-candles/0 to 107,700 Lux
