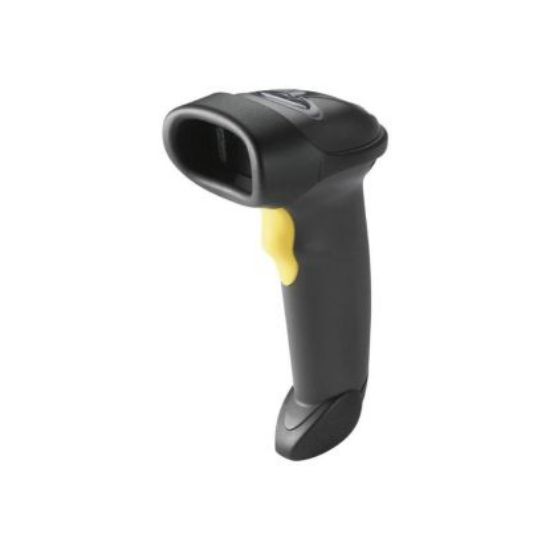

ZEBRA LS2208 Barcode Scanner - USB - 1D

Be the first to review this product
Zebra LS2208 — Reliable, fast, and lightweight barcode scanning for retail, healthcare, and more.

The Zebra LS2208 barcode scanner is a lightweight and durable handheld scanner that delivers fast and accurate 1D barcode scanning, including high-density codes. It features an extended read range, multiple interface support, universal cables, and plug-and-play simplicity, making it a trusted choice for point-of-sale systems worldwide.





Specifications



Physical Characteristics


Dimensions 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D
Weight 5.3 oz./150.0 g
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V) 175 mA (typical)
Standby Current (idle) at Nominal Voltage (5.0V) 90 mA (typical)
Color Cash Register White, Twilight Black
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
User Indicators Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)


Performance Characteristics


Light Source 650 nm Laser Diode Class 2
Scan Pattern Single line
Scan Speed 100 scans per second
Scan Angle 35°
Minimum Print Contrast 20% minimum reflective difference
Skew Tolerance ± 10°
Pitch Tolerance ± 65°
Roll Tolerance ± 60°


User Environment


Operating Temperature 32° to 122° F/0° to 50° C
Storage Temperature -40° to 158° F/-40° to 70° C
Humidity 5% - 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
Environmental Sealing IP30
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux)


Symbol Decode Capability


Scanning Technology Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies.
Minimum Element Resolution Code 39: 3.0 mil
316.25 SAR
increase decrease
Availability: In stock
Free shipping

The Zebra LS2208 barcode scanner is a lightweight and durable handheld scanner that delivers fast and accurate 1D barcode scanning, including high-density codes. It features an extended read range, multiple interface support, universal cables, and plug-and-play simplicity, making it a trusted choice for point-of-sale systems worldwide.





Specifications



Physical Characteristics


Dimensions 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D
Weight 5.3 oz./150.0 g
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V) 175 mA (typical)
Standby Current (idle) at Nominal Voltage (5.0V) 90 mA (typical)
Color Cash Register White, Twilight Black
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards
User Indicators Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)


Performance Characteristics


Light Source 650 nm Laser Diode Class 2
Scan Pattern Single line
Scan Speed 100 scans per second
Scan Angle 35°
Minimum Print Contrast 20% minimum reflective difference
Skew Tolerance ± 10°
Pitch Tolerance ± 65°
Roll Tolerance ± 60°


User Environment


Operating Temperature 32° to 122° F/0° to 50° C
Storage Temperature -40° to 158° F/-40° to 70° C
Humidity 5% - 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
Environmental Sealing IP30
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux)


Symbol Decode Capability


Scanning Technology Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies.
Minimum Element Resolution Code 39: 3.0 mil
